SPOOL PERFORMANCE BILLET MANIFOLD B58 GEN2 TOP MOUNT TURBOCHARGER KIT

from $5,749.00

TURBO SELECTION:
HIGH SIDE CATCH CAN WITH MOUNTING BRACKET:
COATINGS:
Quantity:
Add To Cart

Turbochargers:

The Kit is offered in a variety of PTE air-cooled and Spool IFX water cooled ceramic ball bearing turbos as follows:

PTE 6466 Gen2 Ball Bearing Air Cooled                           -900HP               - 1 year warranty

PTE 6870 Gen2 Ball Bearing Air Cooled                           -1100HP             - 1 year warranty

SPOOL IFX-900 Ball Bearing Water Cooled            -900HP                - Lifetime warranty

SPOOL IFX-1050 Ball Bearing Water Cooled         - 1050HP             - Lifetime warranty

SPOOL IFX-1200 Ball Bearing Water Cooled         - 1200HP             - Lifetime warranty

* SPOOL IFX-1400 Ball Bearing Water Cooled      - 1400HP             - Lifetime warranty available on special request. IFX-1400 utilizes a different riser on the manifold accounting for a bigger wastegate and positioning correction for the bigger frame.

Accessories:

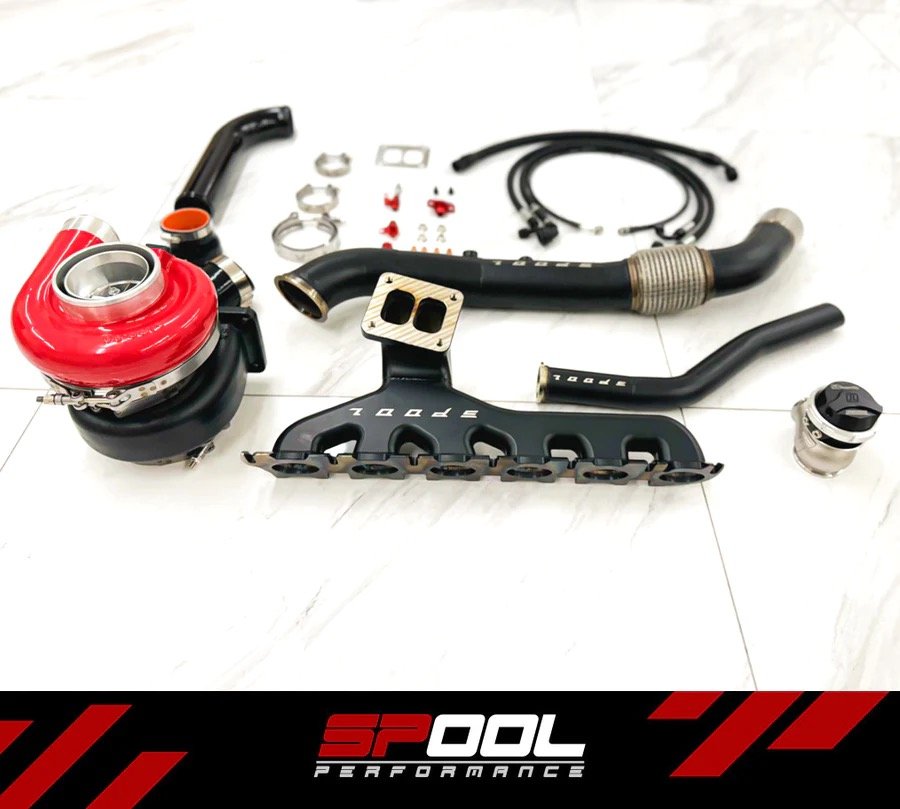

Our kit is designed to be a true plug and play solution. Included with the kit are AN fittings for oil feed and drain, water feed and drain (Spool IFX Turbos), and a water bypass (Precision Turbos and others). We are also offering an optional catch can solution that is a true plug and play solution. A corrosion resistant 304 stainless steel mandrel bent downpipe and dump tube are also included. We are also offering the turbo compressor cover in a color of your choice (default red) and cerakote thermal coating for the hot parts. The following is a list of included and optional parts:

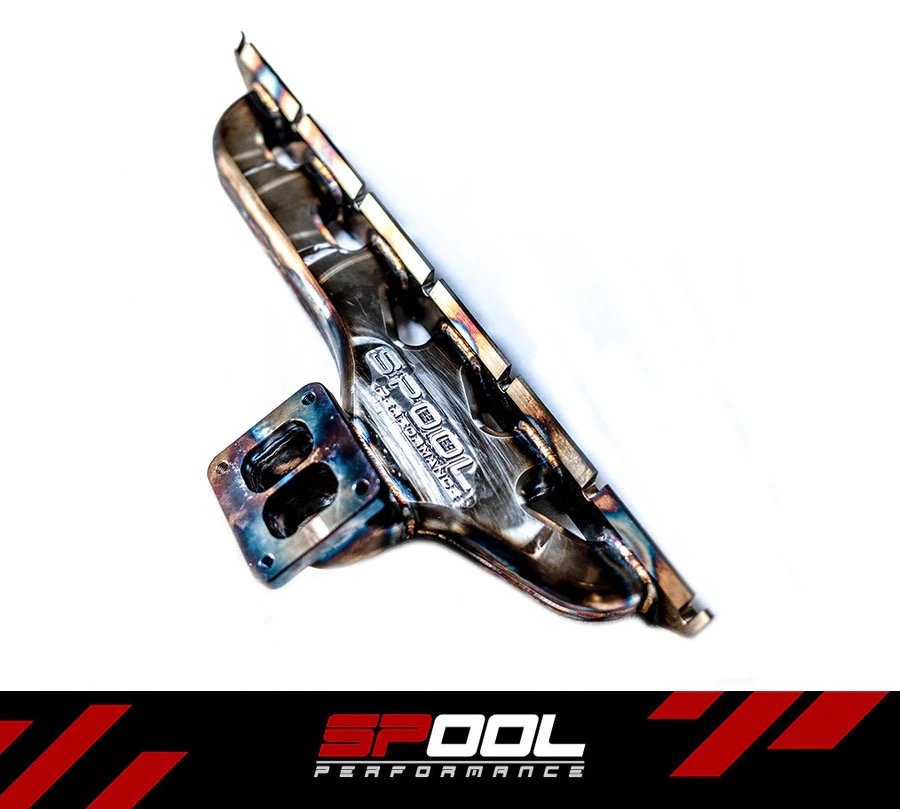

  • Billet exhaust Manifold

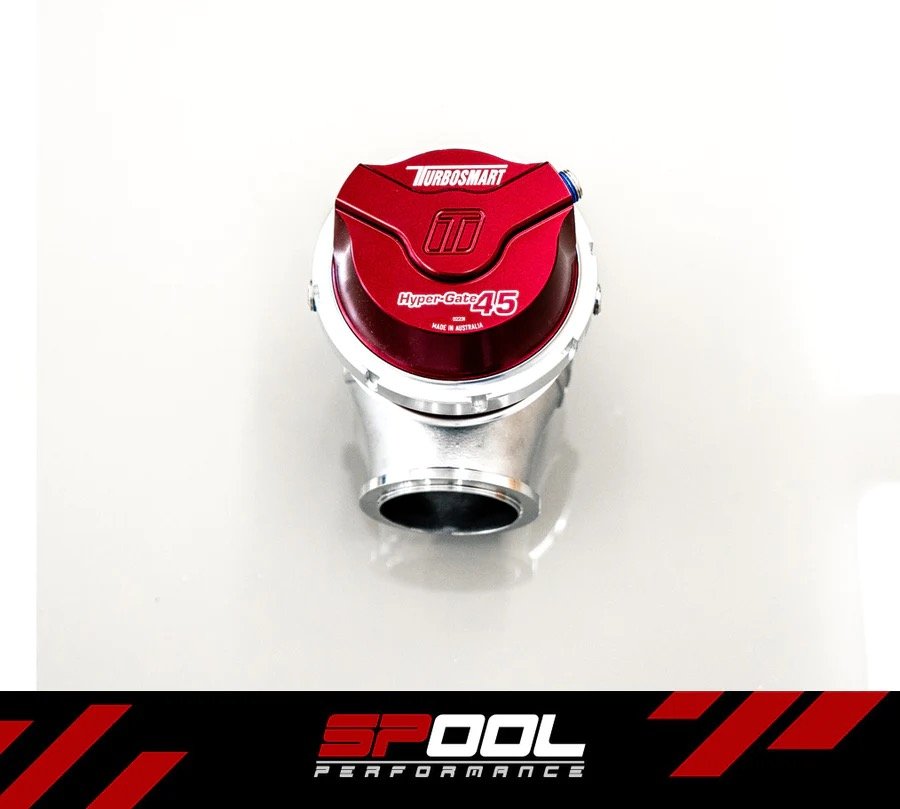

  • 45mm Turbosmart wastegate with springs

  • 304 Stainless steel Mandrel bent downpipe and clamps

  • 304 Stainless steel Mandrel bent wastegate dump and clamps

  • Aluminum Mandrel bent lower charge pipe

  • Plug and Play Water Feed and Drain / Bypass

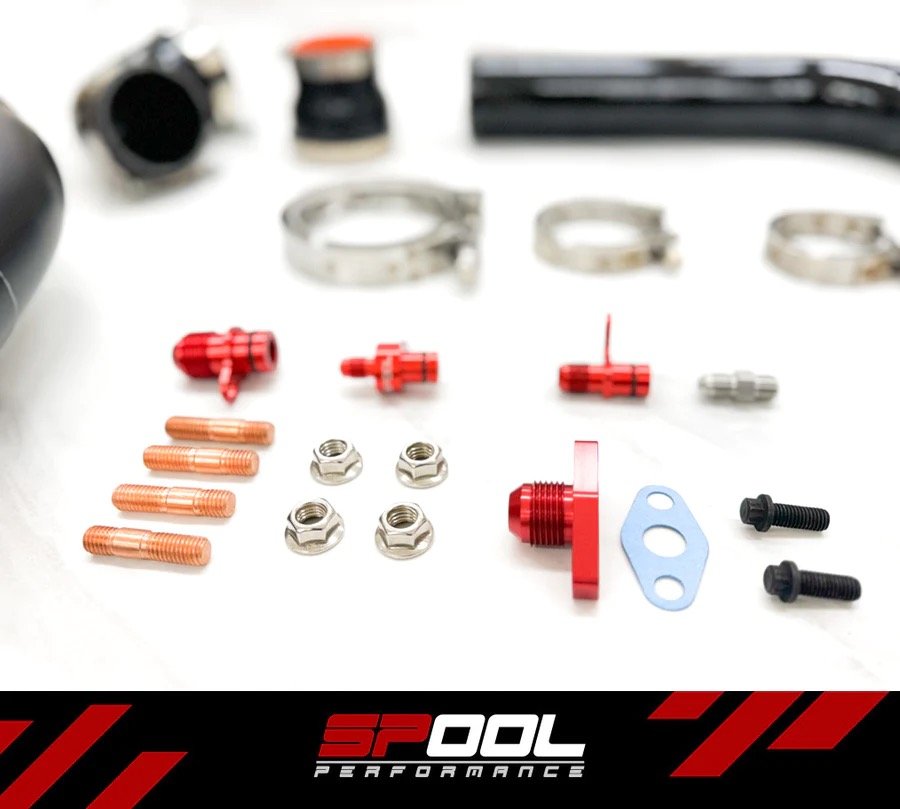

  • Plug and Play Oil Feed and Drain

  • T4 manifold studs and bolts

  • Silicone coupler

  • Lines and fittings for boost control [Solenoid not included]

Optional:

  • Cerakote thermal coating for hot parts

  • Custom color choice for compressor cover

  • Upper charge pipe for stock charge pipe replacement

  • High Side catch can

  • Low Side PCV cap with intake port block-off
